Printing Methods and Surface Treatments for Paper & Card

This article helps high school Design & Technology students familiarise themselves with printing methods and surface treatments suitable for use in graphic products. It concludes with sample examination questions from the Cambridge IGCSE and AS/A Level syllabus.

Colour separation during printing

A2 students only

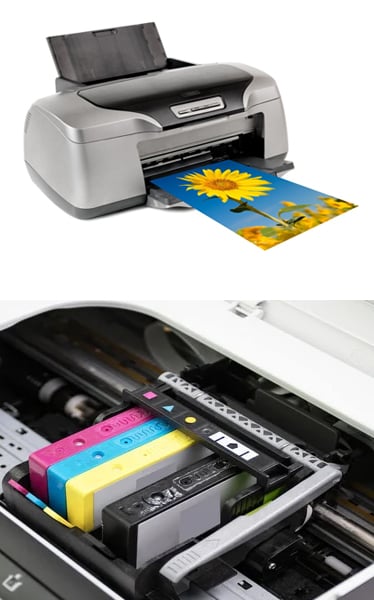

Different printing methods have different ways of applying colour. For example, single colour printing involves using just one colour ink. Digital inkjet printing, on the other hand, applies all colours simultaneously. However, many traditional printing methods, like offset lithography, screen printing, and flexography, apply coloura individually.

Colour separation is the process of breaking down a full-color image into individual color components so each can be printed separately.

In CMYK printing, an image is divided into 4 separate layers – cyan (blue-green), magenta (pinkish-red), yellow, and black. These are the subtractive primary colours + black, which can be combined to make all the other colours. Each color is applied one layer at a time in precise alignment (tiny dots that overlap each other slightly). When these overlap and combine in different amounts, they create all the other colors you see in the final image. Instead of printing “green” the printer lays down cyan + yellow in the same spot, and your eye sees green.

Without colour separation, printers would need a separate ink pre-mixed for each color in the image, which would be impractical and expensive.

Advantages of colour separation during printing:

• Enables full-color printing using just 4 inks (Cyan, Magenta, Yellow, Black)
• Cost-effective for reproducing thousands of colors

Disadvantages of colour separation during printing:

• Requires precise alignment of each colour layer – misregistration causes blurry or offset images
• Difficult to match certain vibrant colors (bright oranges, greens, metallics)
• Can be colour variations between what you see on screen and final print (because screens use RGB colours – represented by mixing red, green, and blue light)

Types of surface treatments used for paper and card

Why surface treatments are used in graphic products

• Protection against physical damage (i.e. UV lacquer can make a book cover more resilient, extending lifespan – better for the environment, as fewer replacements needed / less waste)
• Moisture resistance (food packaging often incorporates water-resistant lamination / PE coating to maintain structural integrity and prevent deterioration when exposed to condensation or spillage – can also allow a surface to be wiped clean, or written on with a whiteboard marker and wiped-off)
• Food safety compliance (can help to ensure packaging meets food safety regulations, with food-grade coatings, such as a PE coating, creating barriers between food products and printed materials, preventing ink migration and contamination)
• Enhanced visual appeal (decorative finishes such as strategic use of matt and gloss finishes or metallic foil can make a product look expensive / appealing)
• Improved tactile qualities (these not only stimulate interest, but can provide important cues for visually impaired users)
• Chemical resistance (protecting against chemical exposure or staining from spills)

Sample exam questions relating to printing methods and surface treatments

AS Design & Technology

Question Answer

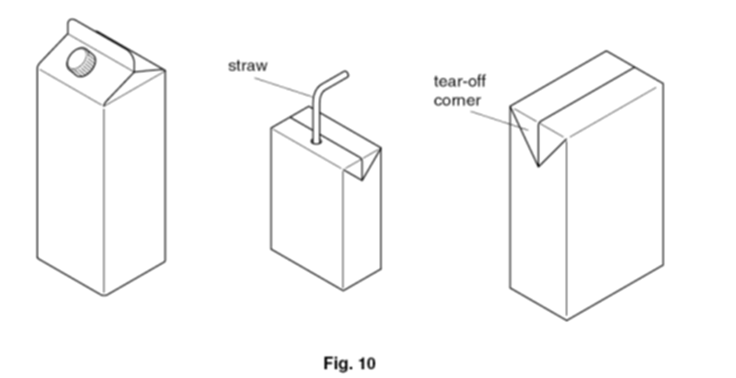

Fig. 10 shows three cartons which are used to hold fruit juice. The cartons are made from card which has been laminated with polythene.

Explain why the card has been laminated with polythene. [2]

Explanation (0-2) e.g.

• To make the card waterproof (so it doesn’t leak or become soggy)
• To provide a more hygienic internal surface, so it doesn’t absorb the juice

Question Answer

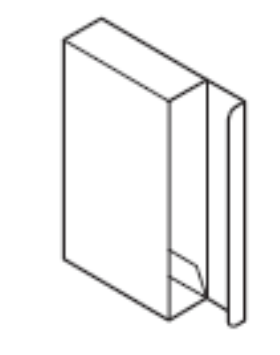

The following box is made from card which has been coated with UV lacquer. The box has one opening flap.

Give two reasons why an ultraviolet (UV) lacquer has been applied to the box. [2]

Gives shiny surface (aesthetic improvement)

Protects surface.

Any two relevant answers (2×1)

Examiner comment

Very few correct answers were seen. Many candidates thought that ultraviolet lacquer would prevent the tape from being damaged by ultraviolet rays from the sun. Correct answers needed to explain that the application of the lacquer protected the card by giving it a very smooth, high gloss finish

Question Answer

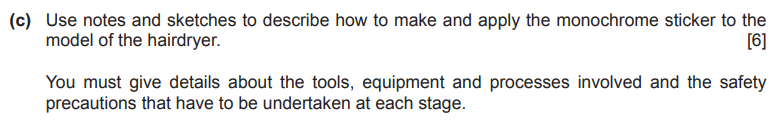

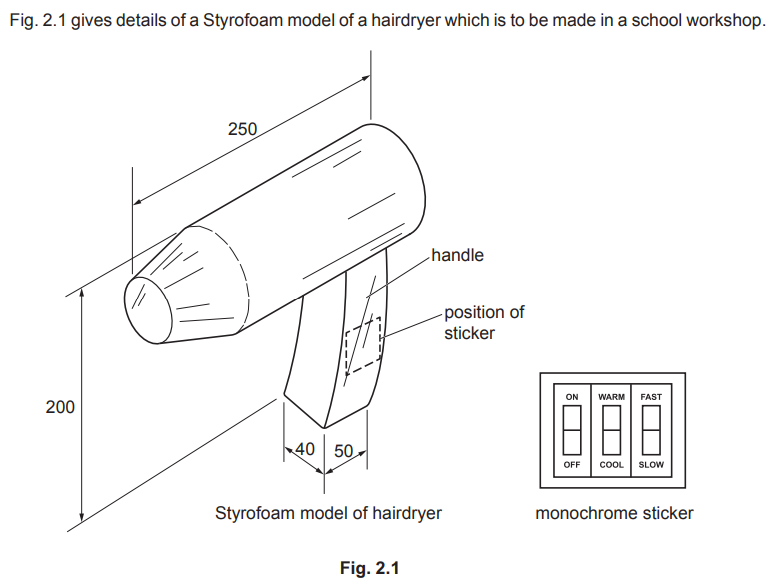

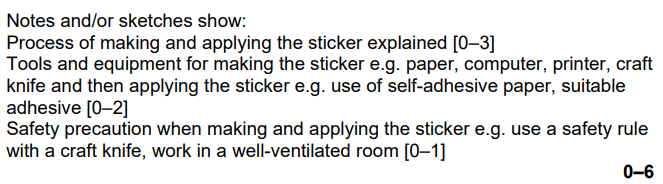

Examiner comment: Candidates had a good understanding of how to make and apply the monochrome sticker. The use of various design packages to design on computer and then print in batches was a very popular response.

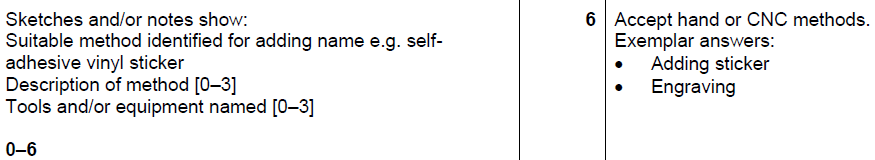

Question Answer

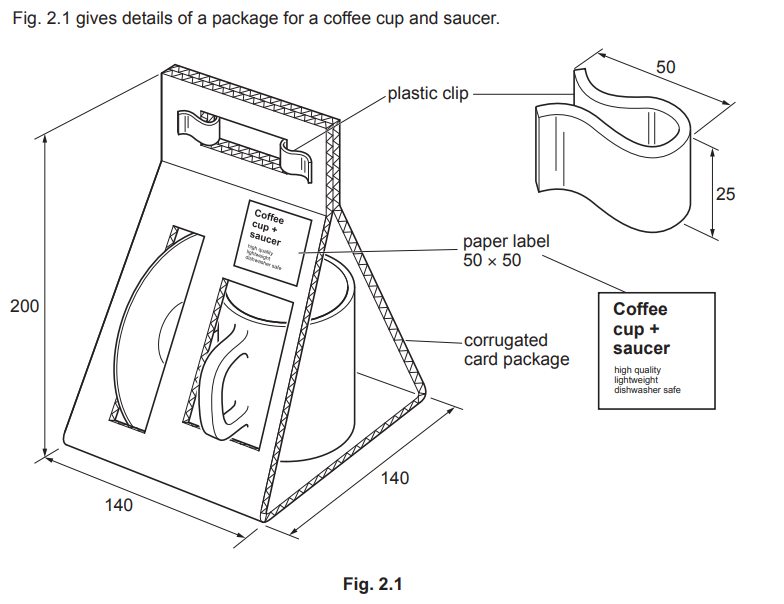

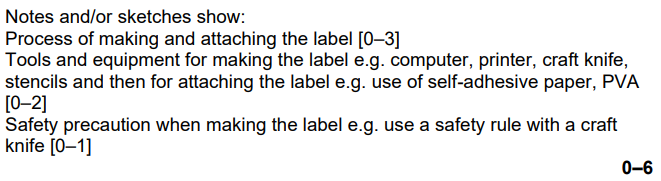

Examiner comment: Candidates had a good understanding of how to make the paper label and attach it to the package. The use of various design packages to design on computer and then print in batches was a very popular response.

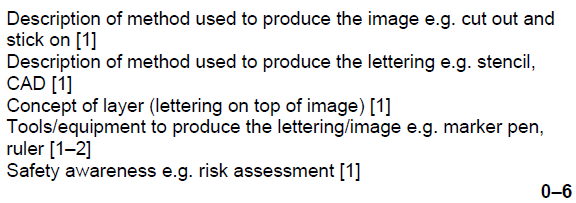

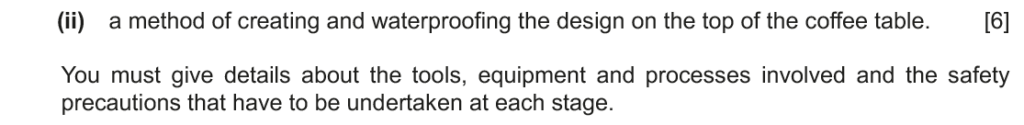

Question Answer

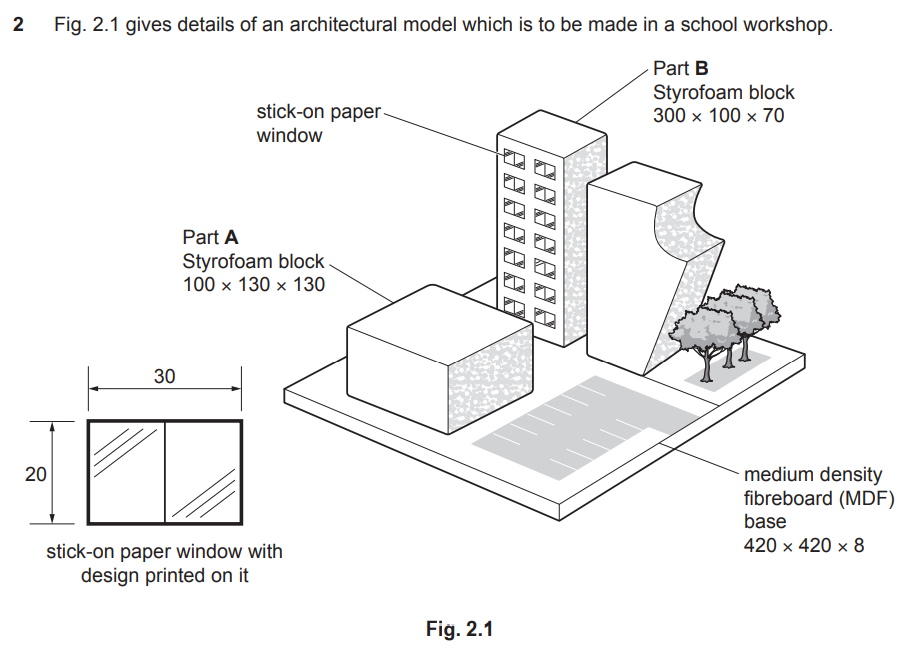

Examiner comment: Candidates had a good understanding of how to make fourteen identical stick-on paper windows with CAD/CAM often used. Occasionally candidates did not design the graphic on the windowpanes.

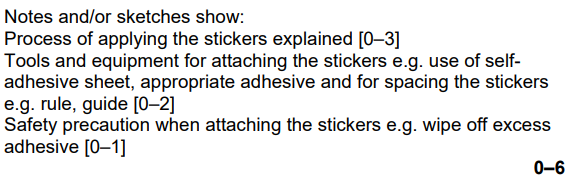

Examiner comment: Candidates gave a wide variety of answers to this question. Stronger candidates either made a stencil or clearly explained how to measure and mark out the even spacing of the fourteen windows. However, some candidates did not give such levels of detail and found the question challenging.

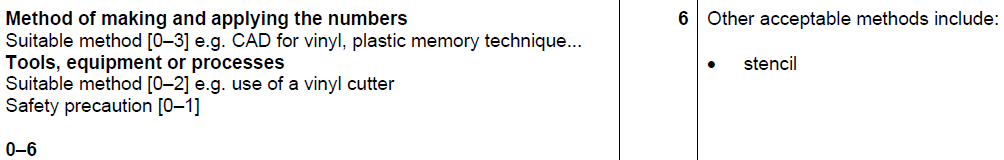

Question Answer

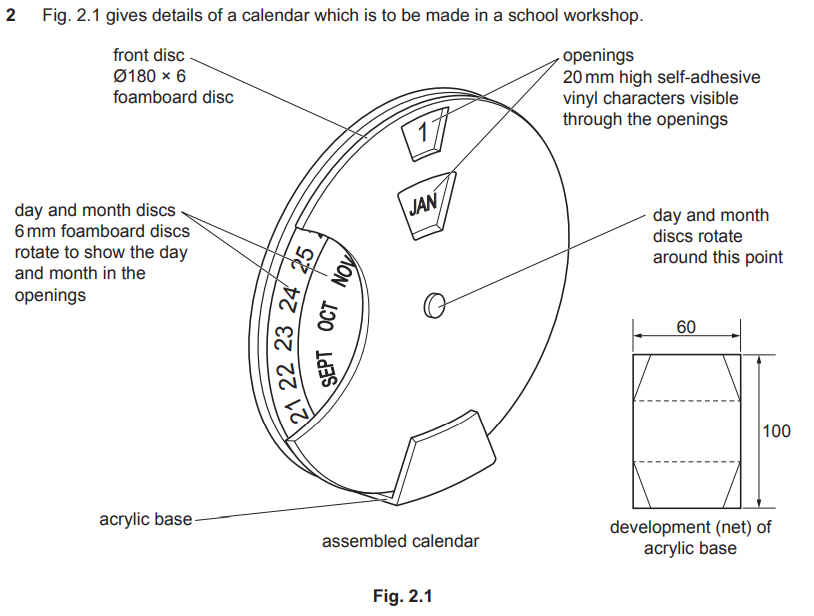

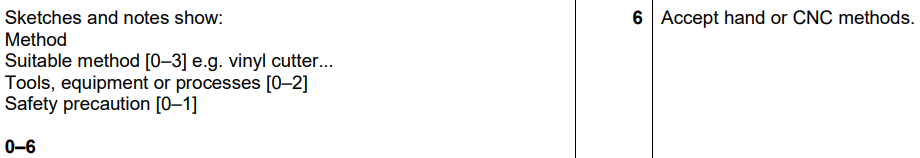

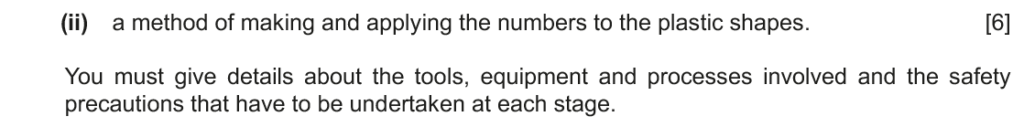

Examiner comment: Candidates had a reasonable understanding of how to make and apply the self-adhesive vinyl characters including the use of tools and equipment as well as CAD/CAM. Safety precautions were often omitted.
